ITT Jabsco Manually-Operated Marine Toilet - Now with New "Twist N Lock Safety Handle". Jabsco is the world's largest manufacturer of small craft marine toilet systems and we have applied all our experience into our latest Manual Toilet refining the design that is used by nearly all boatbuilders worldwide.
For extra safety and peace of mind the intuitive, simple to use, Twist 'n' Lock action handle guards against syphonic flooding and waste backflow. With one easy 90° turn of the handle, the lock is applied. Turning the handle back to the natural operating position opens the lock again.
You may install JABSCO manually operated marine toilets in both power and sailing craft, either above or below the waterline, for use on sea, river, lake or canal.

Features:

• New "Twist N Lock Safety Handle
• Reversible pump mounting allows re-assembly for left hand operation by installer.
• Powerful self-priming, double-acting piston pump.
• Strong swirl action for efficient flushing.
• Crevice free contours and skirted base for added cleanliness and hygiene.
• Contoured handle and conveniently positioned flush control lever for ease of use.
• Angled pump housing and long stroke for easier pumping.
• Spring assisted top valve closure for easier priming.
• Automatic vacuum breaker operated by flush control lever for easier bowl emptying.
• Constant 38mm (1-1/2") bore waste path minimises blockages.
• Aortic joker valve combines full 38mm (1-1/2") bore with automatic back- flow prevention.
• Multi-angle discharge elbow for ease of installation.
• Accessible mounting points for faster installation.
• All fastenings face front or top for superbly simple servicing without need for special tools.
• Renewable external seal housing for quick, clean replacement of seal and piston rod guide.
• Positively located gaskets ensure correct re-assembly.
• Dual function base plug combines winter drain point with easy cleaning access.

Specifications:

• Materials; Luxury wooden seat and cover with tough baked enamel coating
• Hygienic white ceramic bowl for ease of cleaning
• Pump and base moulded in ABS or polypropylene with selected parts in acetal resin, fitted with 316 passivated stainless steel fastenings, brass weights and neoprene seals and gaskets
• Flushing pump self-primes from dry up to 1 meter (3ft) below the base
• Waste pump discharges up to 3 meters (9ft) above the base

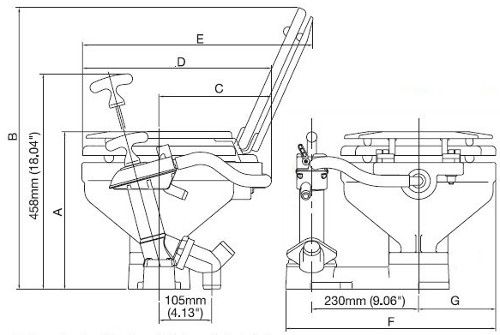

Dimensions:
